| 光学元件材质 | N-BK7 | 设计波长 | 587.6 nm |
| 表面光洁度（划痕/麻点） | 60/40 | 高度方向局部光圈 | 0.5 |
| 长度方向局部光圈 |
0.5 |
曲面局部光圈 | 3 |
| 焦距公差 | ±1% | 偏心度 | ≤3 arcmin |

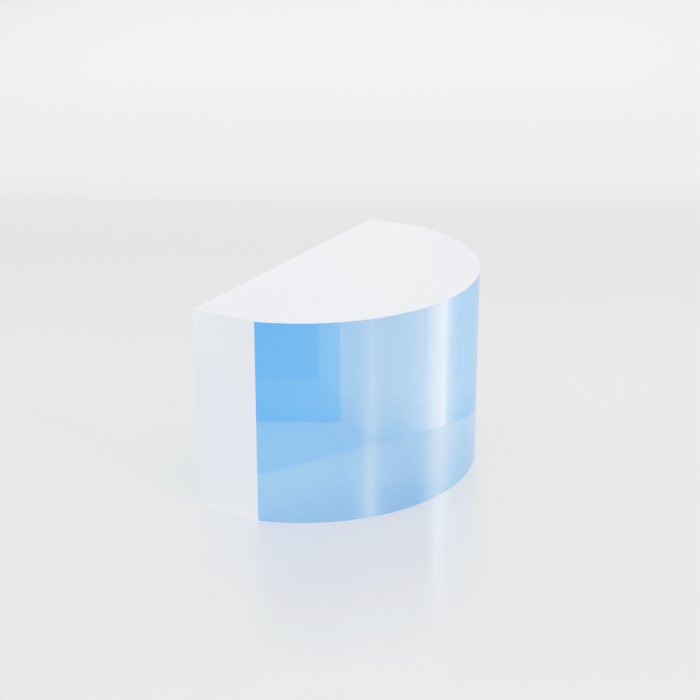

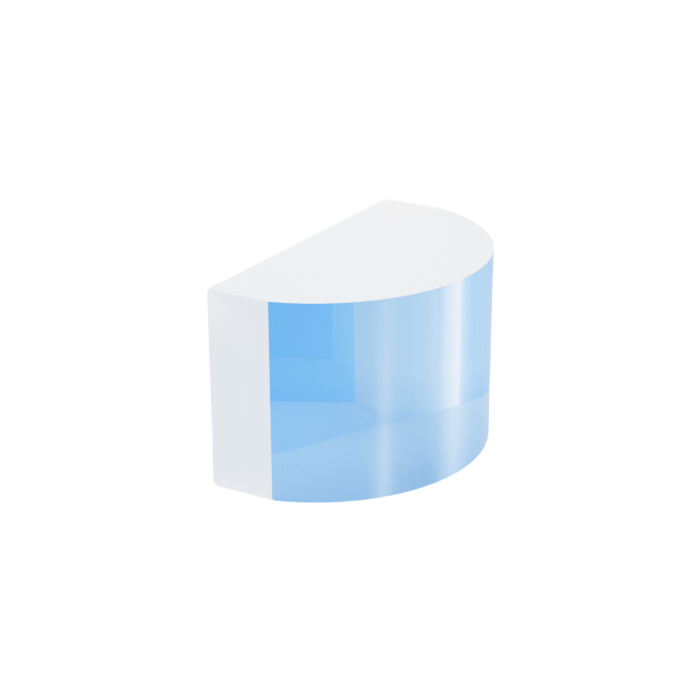

平凸柱面透镜
一：定义

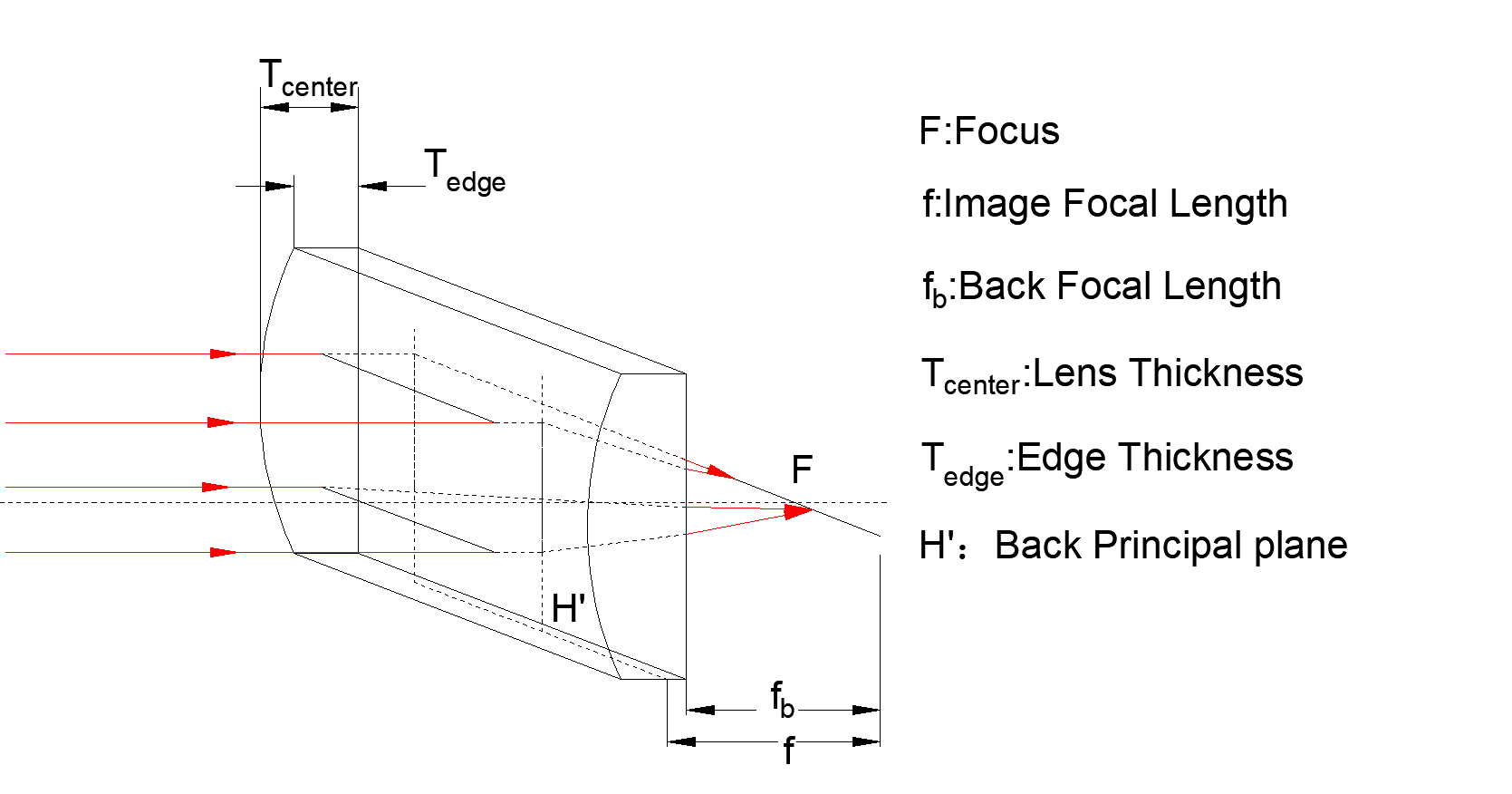

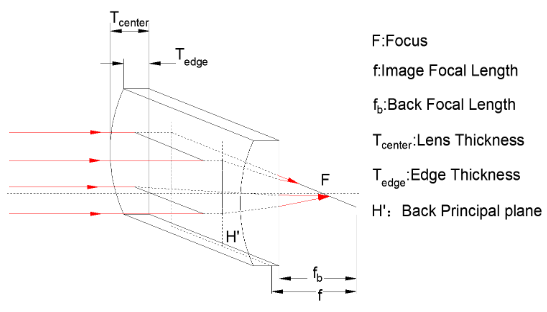

平凸柱面透镜是一种具有平面和凸面形状的透镜。柱面透镜的轴向子午线没有弯度，屈光力子午线在柱面上的圆形的弯度（柱面的曲率方向）最大，因此平行于光轴通过屈光力子午线的光线会汇聚在一点（平凸柱面透镜的焦点）。平凸柱面透镜具有正焦距。为了最小化球差，当将准直光束会聚成一条线时，准直光应从透镜的曲面入射；而当准直线光源时，应将线光源入射到透镜的平面。
二：用途
三：特点
应用：广泛应用在激光加工、光学测量、激光扫描、一维光束整形等诸多领域；
材质：NBK7（K9），配合多波段增透膜，适用多种需求；增透膜能在工作波段有效减少表面反射（单面平均反射率小于0.5%），提高透镜的透过率。
尺寸：多种定制尺寸可选，满足不同应用需求。
| 产品型号 | 尺寸 | 焦距 | 单价 | 发货周期 | 操作 |
|---|---|---|---|---|---|
|
PXC11021
|
H x L= 4.0 mm x 6.0 mm | 5.8 mm | ¥ 328.00 |
1周
|
|
|
PXC12011
|
H x L= 4.0 mm x 8.0 mm | 4.0 mm | ¥ 356.00 |
1周
|
|
|
PXC13031
|
H x L= 7.0 mm x 9.0 mm | 7.7 mm | ¥ 356.00 |
1周
|
|
|
PXC14041
|
H x L= 10.0 mm x 12.0 mm | 10.0 mm | ¥ 398.00 |
1周
|
|
|
PXC14051
|
H x L= 10.0 mm x 12.0 mm | 20.0 mm | ¥ 405.00 |
1周
|
|
|
PXC14061
|
H x L= 10.0 mm x 12.0 mm | 25.0 mm | ¥ 391.00 |
1周
|
|
|
PXC14071
|
H x L= 10.0 mm x 12.0 mm | 40.0 mm | ¥ 391.00 |
1周
|
|
|
PXC15041
|
H x L= 10.0 mm x 20.0 mm | 10.0 mm | ¥ 493.00 |
1周
|
|
|
PXC15051
|
H x L= 10.0 mm x 20.0 mm | 20.0 mm | ¥ 484.00 |
1周
|
|
|
PXC15071
|
H x L= 10.0 mm x 20.0 mm | 40.0 mm | ¥ 484.00 |
1周
|
|
|
PXC16071
|
H x L= 20.0 mm x 22.0 mm | 40.0 mm | ¥ 572.00 |
1周
|
|
|
PXC17081
|
H x L= 30.0 mm x 32.0 mm | 50.0 mm | ¥ 755.00 |
1周
|
|
|
PXC17091
|
H x L= 30.0 mm x 32.0 mm | 60.0 mm | ¥ 755.00 |
1周
|
|
|
PXC17111
|
H x L= 30.0 mm x 32.0 mm | 100.0 mm | ¥ 755.00 |
1周
|
|
|
PXC17121
|
H x L= 30.0 mm x 32.0 mm | 150.0 mm | ¥ 755.00 |
1周
|
|
|
PXC17141
|
H x L= 30.0 mm x 32.0 mm | 300.0 mm | ¥ 747.00 |
1周
|
|
|
PXC18131
|
H x L= 30.0 mm x 60.0 mm | 200.0 mm | ¥ 850.00 |
1周
|
|
|
PXC18151
|
H x L= 30.0 mm x 60.0 mm | 1000.0 mm | ¥ 934.00 |
1周
|
|
|
PXC19121
|
H × L=100.0 mm × 90.0 mm | 150.0 mm | ¥ 2106.00 |
1周
|
|
| 产品型号 | 尺寸 | 焦距 | 单价 | 发货周期 | 操作 |
|---|---|---|---|---|---|
|
PXC11022-A
|
H x L= 4.0 mm x 6.0 mm | 5.8 mm | ¥ 402.00 |
1周
|
|
|
PXC12012-A
|
H x L= 4.0 mm x 8.0 mm | 4.0 mm | ¥ 450.00 |
1周
|
|
|
PXC13032-A
|
H x L= 7.0 mm x 9.0 mm | 7.7 mm | ¥ 450.00 |
1周
|
|
|
PXC14042-A
|
H x L= 10.0 mm x 12.0 mm | 10.0 mm | ¥ 466.00 |
1周
|
|
|
PXC14052-A
|
H x L= 10.0 mm x 12.0 mm | 20.0 mm | ¥ 466.00 |
1周
|
|
|
PXC14062-A
|
H x L= 10.0 mm x 12.0 mm | 25.0 mm | ¥ 457.00 |
1周
|
|
|
PXC14072-A
|
H x L= 10.0 mm x 12.0 mm | 40.0 mm | ¥ 457.00 |
1周
|
|
|
PXC15042-A
|
H x L= 10.0 mm x 20.0 mm | 10.0 mm | ¥ 584.00 |
1周
|
|
|
PXC15052-A
|
H x L= 10.0 mm x 20.0 mm | 20.0 mm | ¥ 572.00 |
1周
|
|
|
PXC15072-A
|
H x L= 10.0 mm x 20.0 mm | 40.0 mm | ¥ 551.00 |
1周
|
|
|
PXC16072-A
|
H x L= 20.0 mm x 22.0 mm | 40.0 mm | ¥ 640.00 |
1周
|
|
|
PXC17082-A
|
H x L= 30.0 mm x 32.0 mm | 50.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17092-A
|
H x L= 30.0 mm x 32.0 mm | 60.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17112-A
|
H x L= 30.0 mm x 32.0 mm | 100.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17122-A
|
H x L= 30.0 mm x 32.0 mm | 150.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17142-A
|
H x L= 30.0 mm x 32.0 mm | 300.0 mm | ¥ 821.00 |
1周
|
|
|
PXC18132-A
|
H x L= 30.0 mm x 60.0 mm | 200.0 mm | ¥ 1002.00 |
1周
|
|
|
PXC18152-A
|
H x L= 30.0 mm x 60.0 mm | 1000.0 mm | ¥ 1002.00 |
1周
|
|
| 产品型号 | 尺寸 | 焦距 | 单价 | 发货周期 | 操作 |
|---|---|---|---|---|---|
|
PXC11023-B
|
H x L= 4.0 mm x 6.0 mm | 5.8 mm | ¥ 402.00 |
1周
|
|
|
PXC12013-B
|
H x L= 4.0 mm x 8.0 mm | 4.0 mm | ¥ 450.00 |
1周
|
|
|
PXC13033-B
|
H x L= 7.0 mm x 9.0 mm | 7.7 mm | ¥ 458.00 |
1周
|
|
|
PXC14043-B
|
H x L= 10.0 mm x 12.0 mm | 10.0 mm | ¥ 466.00 |
1周
|
|
|
PXC14053-B
|
H x L= 10.0 mm x 12.0 mm | 20.0 mm | ¥ 466.00 |
1周
|
|
|
PXC14063-B
|
H x L= 10.0 mm x 12.0 mm | 25.0 mm | ¥ 457.00 |
1周
|
|
|
PXC14073-B
|
H x L= 10.0 mm x 12.0 mm | 40.0 mm | ¥ 457.00 |
1周
|
|
|
PXC15043-B
|
H x L= 10.0 mm x 20.0 mm | 10.0 mm | ¥ 584.00 |
1周
|
|
|
PXC15053-B
|
H x L= 10.0 mm x 20.0 mm | 20.0 mm | ¥ 572.00 |
1周
|
|
|
PXC15073-B
|
H x L= 10.0 mm x 20.0 mm | 40.0 mm | ¥ 551.00 |
1周
|
|
|
PXC16073-B
|
H x L= 20.0 mm x 22.0 mm | 40.0 mm | ¥ 640.00 |
1周
|
|
|
PXC17083-B
|
H x L= 30.0 mm x 32.0 mm | 50.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17093-B
|
H x L= 30.0 mm x 32.0 mm | 60.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17113-B
|
H x L= 30.0 mm x 32.0 mm | 100.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17123-B
|
H x L= 30.0 mm x 32.0 mm | 150.0 mm | ¥ 821.00 |
1周
|
|
|
PXC17143-B
|
H x L= 30.0 mm x 32.0 mm | 300.0 mm | ¥ 821.00 |
1周
|
|
|
PXC18133-B
|
H x L= 30.0 mm x 60.0 mm | 200.0 mm | ¥ 1002.00 |
1周
|
|
|
PXC18153-B
|
H x L= 30.0 mm x 60.0 mm | 1000.0 mm | ¥ 1002.00 |
1周
|
|
|
PXC19103-B
|
H x L= 50.8 mm x 53.0 mm | 75.6 mm | ¥ 1193.00 |
1周
|
|
