| 表面光洁度（划痕/麻点） | 40/20 | 焦距公差 | ±1% |
| 曲面光圈 |
3 |
曲面局部光圈 | 0.5 |
| 偏心度 | ≤3 arcmin |

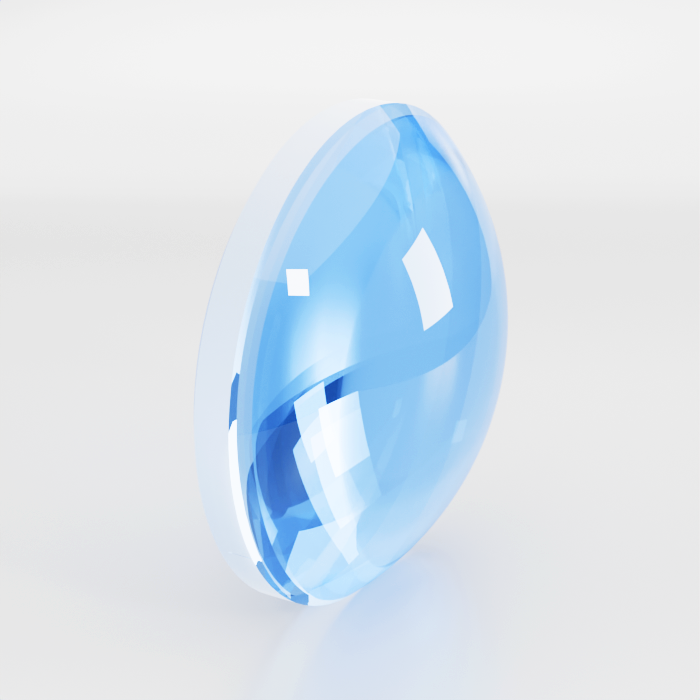

消色差胶合透镜
一：定义
消色差胶合透镜通常交替使用低折射率材料的正透镜和高折射率材料的负透镜（补偿作用）。它的设计目的是消除由透镜引起的色差（如图1），即消除不同波长的光在透镜中折射后聚焦位置的差异。

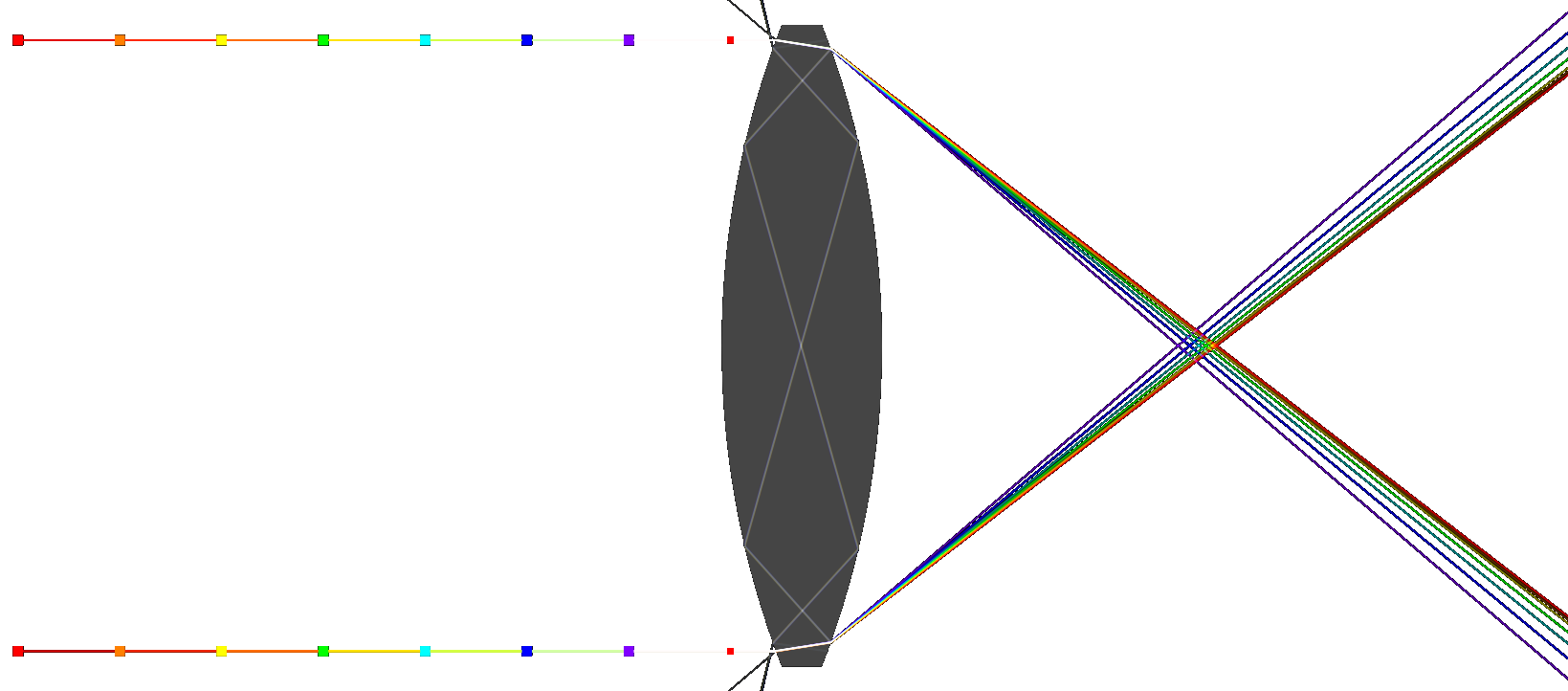

图1：色差示意图
二：特点
三：说明
消色差胶合透镜的最大特点是能够有效地减少或消除色差。镜通过精心选择两种不同材料（如常见的低色散玻璃和高色散玻璃）组合，优化了不同波长的光线聚焦，能显著减小色差；消色差胶合透镜能够有效减小球差、彗差等畸变问题，兼顾较好的离轴性能。
同时与单透镜组合相比，消色差胶合透镜通可以减少需要多片透镜的复杂设计，降低制造成本和体积，且系统的光学性能更稳定。
四：应用
| 产品型号 | 直径 | 焦距 | 单价 | 发货周期 | 对比 | 分享 | 操作 |
|---|---|---|---|---|---|---|---|
|
ARL1100-A
|
6 mm | 10.0 mm | ¥ 325.00 |
4周
|
|
| |
|
ARL1101-A
|
12.7 mm | 19.0 mm | ¥ 393.00 |
1周
|
|
| |
|
ARL1102-A
|
12.7 mm | 25.0 mm | ¥ 393.00 |
1周
|
|
| |
|
ARL1103-A
|
12.7 mm | 30.0 mm |
￥282.96
7.2折
|
现货
现货
1周
|
|
| |
|
ARL1107-A
|
12.7 mm | 50.0 mm |
￥282.96
7.2折
|
现货
现货
4周
|
|
| |
|
ARL1111-A
|
12.7 mm | 75.0 mm |
￥341.91
8.7折
|
现货
现货
4周
|
|
| |
|
ARL1203-A
|
25.4 mm | 30.0 mm |
￥460.98
7.8折
|
现货
现货
4周
|
|
| |
|
ARL1204-A
|
25.4 mm | 35.0 mm |
￥460.98
7.8折
|
现货
现货
4周
|
|
| |
|
ARL1205-A
|
25.4 mm | 40.0 mm | ¥ 574.00 |
1周
1周
1周
|
|
| |
|
ARL1206-A
|
25.4 mm | 45.0 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1252-A
|
25.4 mm | -50.0 mm |
￥508.79
8.3折
|
现货
现货
1周
|
|
| |
|
ARL1208-A
|
25.4 mm | 50 mm |
￥516.60
9折
|
现货
现货
4周
|
|
| |
|
ARL1210-A
|
25.4 mm | 60 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1253-A
|
25.4 mm | -75.0 mm | ¥ 613.00 |
现货
现货
1周
|
|
| |
|
ARL1211-A
|
25.4 mm | 75.0 mm | ¥ 574.00 |
现货
现货
1周
|
|
| |
|
ARL1212-A
|
25.4 mm | 80.0 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1213-A
|
25.4 mm | 100.0 mm |
￥453.46
7.9折
|
现货
现货
4周
|
|
| |
|
ARL1214-A
|
25.4 mm | 125.0 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1215-A
|
25.4 mm | 150.0 mm |
￥516.60
9折
|
现货
现货
1周
|
|
| |
|
ARL1217-A
|
25.4 mm | 200.0 mm |
￥453.46
7.9折
|
现货
现货
4周
|
|
| |
|
ARL1218-A
|
25.4 mm | 250.0 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1219-A
|
25.4 mm | 300.0 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1220-A
|
25.4 mm | 400.0 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1221-A
|
25.4 mm | 500.0 mm | ¥ 574.00 |
1周
|
|
| |
|
ARL1311-A
|
50.8 mm | 75.0 mm |
￥682.92
8.4折
|
现货
现货
1周
|
|
| |
|
ARL1312-A
|
50.8 mm | 80.0 mm | ¥ 828.00 |
1周
|
|
| |
|
ARL1313-A
|
50.8 mm | 100.0 mm |
￥678.54
8.6折
|
现货
现货
1周
|
|
| |
|
ARL1315-A
|
50.8 mm | 150.0 mm |
￥678.54
8.6折
|
现货
现货
1周
|
|
| |
|
ARL1316-A
|
50.8 mm | 180.0 mm | ¥ 789.00 |
1周
|
|
| |
|
ARL1317-A
|
50.8 mm | 200.0 mm |
￥682.92
8.4折
|
现货
现货
1周
|
|
| |
|
ARL1319-A
|
50.8 mm | 300.0 mm |
￥682.92
8.4折
|
现货
现货
1周
|
|
| |
|
ARL1320-A
|
50.8 mm | 400.0 mm |
￥682.92
8.4折
|
现货
现货
现货
|
|
| |
|
ARL1321-A
|
50.8 mm | 500.0 mm | ¥ 813.00 |
1周
|
|
| |
|
ARL1322-A
|
50.8 mm | 750.0 mm | ¥ 813.00 |
1周
|
|
| |
|
ARL1323-A
|
50.8 mm | 1000.0 mm | ¥ 813.00 |
1周
|
|
| |
|
ARL1001-A
|
5 mm | 15 mm | ¥ 334.80 |
请联系客服
|
|
| |
|
ARL1002-A
|
5 mm | 10 mm | ¥ 334.80 |
请联系客服
|
|
| |
|
ARL1003-A
|
5 mm | 7.7 mm | ¥ 334.80 |
请联系客服
|
|
| |
|
ARL1004-A
|
6.35 mm | 15 mm | ¥ 321.30 |
请联系客服
|
|
| |
|
ARL1005-A
|
8 mm | 30 mm | ¥ 323.10 |
请联系客服
|
|
| |
|
ARL1006-A
|
8 mm | 10 mm | ¥ 329.40 |
请联系客服
|
|
| |
|
ARL1007-A
|
30 mm | 100 mm | ¥ 611.10 |
请联系客服
|
|
| |
|
ARL1008-A
|
30 mm | 80 mm | ¥ 611.10 |
请联系客服
|
|
| |
|
ARL1009-A
|
30 mm | 50 mm | ¥ 611.10 |
请联系客服
|
|
|
| 产品型号 | 直径 | 焦距 | 单价 | 发货周期 | 对比 | 分享 | 操作 |
|---|---|---|---|---|---|---|---|
|
ARL1101-B
|
12.7 mm | 19.0 mm | ¥ 404.00 |
1周
|
|
| |
|
ARL1102-B
|
12.7 mm | 25.0 mm | ¥ 404.00 |
现货
现货
1周
|
|
| |
|
ARL1103-B
|
12.7 mm | 30.0 mm | ¥ 404.00 |
现货
现货
4周
|
|
| |
|
ARL1107-B
|
12.7 mm | 50.0 mm | ¥ 404.00 |
1周
|
|
| |
|
ARL1111-B
|
12.7 mm | 75.0 mm | ¥ 404.00 |
现货
现货
1周
|
|
| |
|
ARL1203-B
|
25.4 mm | 30.0 mm | ¥ 603.00 |
现货
现货
4周
|
|
| |
|
ARL1204-B
|
25.4 mm | 35.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1251-B
|
25.4 mm | -40.0 mm | ¥ 613.00 |
1周
|
|
| |
|
ARL1205-B
|
25.4 mm | 40.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1206-B
|
25.4 mm | 45.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1207-B
|
25.4 mm | 50.0 mm | ¥ 603.00 |
现货
现货
4周
|
|
| |
|
ARL1209-B
|
25.4 mm | 60.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1211-B
|
25.4 mm | 75.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1212-B
|
25.4 mm | 80.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1213-B
|
25.4 mm | 100.0 mm | ¥ 603.00 |
现货
现货
4周
|
|
| |
|
ARL1214-B
|
25.4 mm | 125.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1215-B
|
25.4 mm | 150.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1217-B
|
25.4 mm | 200.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1218-B
|
25.4 mm | 250.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1219-B
|
25.4 mm | 300.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1220-B
|
25.4 mm | 400.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1221-B
|
25.4 mm | 500.0 mm | ¥ 603.00 |
1周
|
|
| |
|
ARL1311-B
|
50.8 mm | 75.0 mm | ¥ 828.00 |
现货
现货
1周
|
|
| |
|
ARL1312-B
|
50.8 mm | 80.0 mm | ¥ 828.00 |
1周
|
|
| |
|
ARL1313-B
|
50.8 mm | 100.0 mm | ¥ 828.00 |
现货
现货
1周
|
|
| |
|
ARL1315-B
|
50.8 mm | 150.0 mm | ¥ 828.00 |
现货
现货
1周
|
|
| |
|
ARL1317-B
|
50.8 mm | 200.0 mm | ¥ 828.00 |
现货
现货
1周
|
|
| |
|
ARL1318-B
|
50.8 mm | 250.0 mm | ¥ 828.00 |
现货
现货
1周
|
|
| |
|
ARL1319-B
|
50.8 mm | 300.0 mm | ¥ 828.00 |
现货
现货
1周
|
|
| |
|
ARL1320-B
|
50.8 mm | 400.0 mm | ¥ 828.00 |
现货
现货
现货
|
|
| |
|
ARL1321-B
|
50.8 mm | 500.0 mm | ¥ 828.00 |
1周
|
|
| |
|
ARL1322-B
|
50.8 mm | 750.0 mm | ¥ 828.00 |
1周
1周
1周
|
|
| |
|
ARL1323-B
|
50.8 mm | 1000.0 mm | ¥ 828.00 |
1周
|
|
| |
|
ARL1011-B
|
5 mm | 7.5 mm | ¥ 324.00 |
请联系客服
|
|
| |
|
ARL1012-B
|
5 mm | 15 mm | ¥ 324.00 |
请联系客服
|
|
| |
|
ARL1013-B
|
5 mm | 10 mm | ¥ 324.00 |
请联系客服
|
|
| |
|
ARL1014-B
|
5 mm | 10 mm | ¥ 307.80 |
请联系客服
|
|
| |
|
ARL1015-B
|
8 mm | 30 mm | ¥ 323.10 |
请联系客服
|
|
| |
|
ARL1016-B
|
8 mm | 16 mm | ¥ 323.10 |
请联系客服
|
|
| |
|
ARL1017-B
|
25.4 mm | 135 mm | ¥ 601.20 |
请联系客服
|
|
| |
|
ARL1018-B
|
30 mm | 100 mm | ¥ 630.00 |
请联系客服
|
|
| |
|
ARL1019-B
|
30 mm | 80 mm | ¥ 630.00 |
请联系客服
|
|
| |
|
ARL1020-B
|
30 mm | 50 mm | ¥ 630.00 |
请联系客服
|
|
|
| 产品型号 | 直径 | 焦距 | 单价 | 发货周期 | 对比 | 分享 | 操作 |
|---|---|---|---|---|---|---|---|
|
ARL1102-C
|
12.7 mm | 25.0 mm | ¥ 499.00 |
1周
|
|
| |
|
ARL1103-C
|
12.7 mm | 30.0 mm | ¥ 499.00 |
1周
|
|
| |
|
ARL1107-C
|
12.7 mm | 50.0 mm | ¥ 499.00 |
现货
现货
4周
|
|
| |
|
ARL1111-C
|
12.7 mm | 75.0 mm | ¥ 499.00 |
现货
现货
1周
|
|
| |
|
ARL1203-C
|
25.4 mm | 30.0 mm | ¥ 674.00 |
现货
现货
1周
|
|
| |
|
ARL1204-C
|
25.4 mm | 35.0 mm | ¥ 674.00 |
1周
|
|
| |
|
ARL1206-C
|
25.4 mm | 45.0 mm | ¥ 674.00 |
现货
现货
1周
|
|
| |
|
ARL1209-C
|
25.4 mm | 60.0 mm | ¥ 674.00 |
1周
|
|
| |
|
ARL1211-C
|
25.4 mm | 75.0 mm | ¥ 662.00 |
现货
现货
4周
|
|
| |
|
ARL1214-C
|
25.4 mm | 125.0 mm | ¥ 674.00 |
1周
|
|
| |
|
ARL1220-C
|
25.4 mm | 400.0 mm | ¥ 674.00 |
1周
|
|
| |
|
ARL1311-C
|
50.8 mm | 75.0 mm | ¥ 1173.00 |
现货
现货
1周
|
|
| |
|
ARL1312-C
|
50.8 mm | 80.0 mm | ¥ 1173.00 |
1周
|
|
| |
|
ARL1313-C
|
50.8 mm | 100.0 mm | ¥ 1173.00 |
现货
现货
1周
|
|
| |
|
ARL1315-C
|
50.8 mm | 150.0 mm | ¥ 1173.00 |
现货
现货
1周
|
|
| |
|
ARL1317-C
|
50.8 mm | 200.0 mm | ¥ 1173.00 |
现货
现货
1周
|
|
| |
|
ARL1318-C
|
50.8 mm | 250.0 mm | ¥ 1173.00 |
现货
现货
1周
|
|
| |
|
ARL1319-C
|
50.8 mm | 300.0 mm | ¥ 1173.00 |
1周
|
|
| |
|
ARL1320-C
|
50.8 mm | 400.0 mm | ¥ 1173.00 |
1周
|
|
| |
|
ARL1321-C
|
50.8 mm | 500.0 mm | ¥ 1173.00 |
1周
|
|
| |
|
ARL1322-C
|
50.8 mm | 750.0 mm | ¥ 1173.00 |
1周
|
|
| |
|
ARL1323-C
|
50.8 mm | 1000.0 mm | ¥ 1173.00 |
1周
|
|
| |
|
ARL1021-C
|
5 mm | 7.5 mm | ¥ 355.50 |
请联系客服
|
|
| |
|
ARL1022-C
|
5 mm | 15 mm | ¥ 355.50 |
请联系客服
|
|
| |
|
ARL1023-C
|
5 mm | 10 mm | ¥ 355.50 |
请联系客服
|
|
| |
|
ARL1024-C
|
5 mm | 10 mm | ¥ 342.00 |
请联系客服
|
|
| |
|
ARL1025-C
|
8 mm | 30 mm | ¥ 423.00 |
请联系客服
|
|
| |
|
ARL1026-C
|
25.4 mm | 500.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1027-C
|
25.4 mm | 300.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1028-C
|
25.4 mm | 250.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1029-C
|
25.4 mm | 200.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1030-C
|
25.4 mm | 150.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1031-C
|
25.4 mm | 100.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1032-C
|
25.4 mm | 50.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1033-C
|
25.4 mm | 40.0 mm | ¥ 756.00 |
请联系客服
|
|
| |
|
ARL1034-C
|
30 mm | 100 mm | ¥ 819.00 |
请联系客服
|
|
| |
|
ARL1035-C
|
30 mm | 50 mm | ¥ 819.00 |
请联系客服
|
|
|
